Stable ventilation for the little ones
The optimum calf barn
Our virtual calf stall
You can see for yourself in our virtual calf barn: Discover our calf barn ventilation solutions, such as the TopCalf calf housing program and the fully automatic temperature control with climate controller.
Start your 3D tour with just one click and experience step by step how modern calf housing systems and sophisticated hose ventilation in the calf barn ensure a healthy barn climate for calves.
Whether summer or winter
Always the best climate in your barn
With the help of an adjustable double membrane , our combi hose automatically adjusts to cold or warm temperatures and the climatic differences between summer and winter. This makes the climate in the barn even better for your calves.
This development has the following advantages:
In summer mode (above 8 °C)
- Direct air flow onto the animals - Adjusted air flow depending on the temperature ensures a cooling effect
In winter operation (below 8 °C)
- Indirect air flow onto the animals - Cold air falls specifically onto the animals

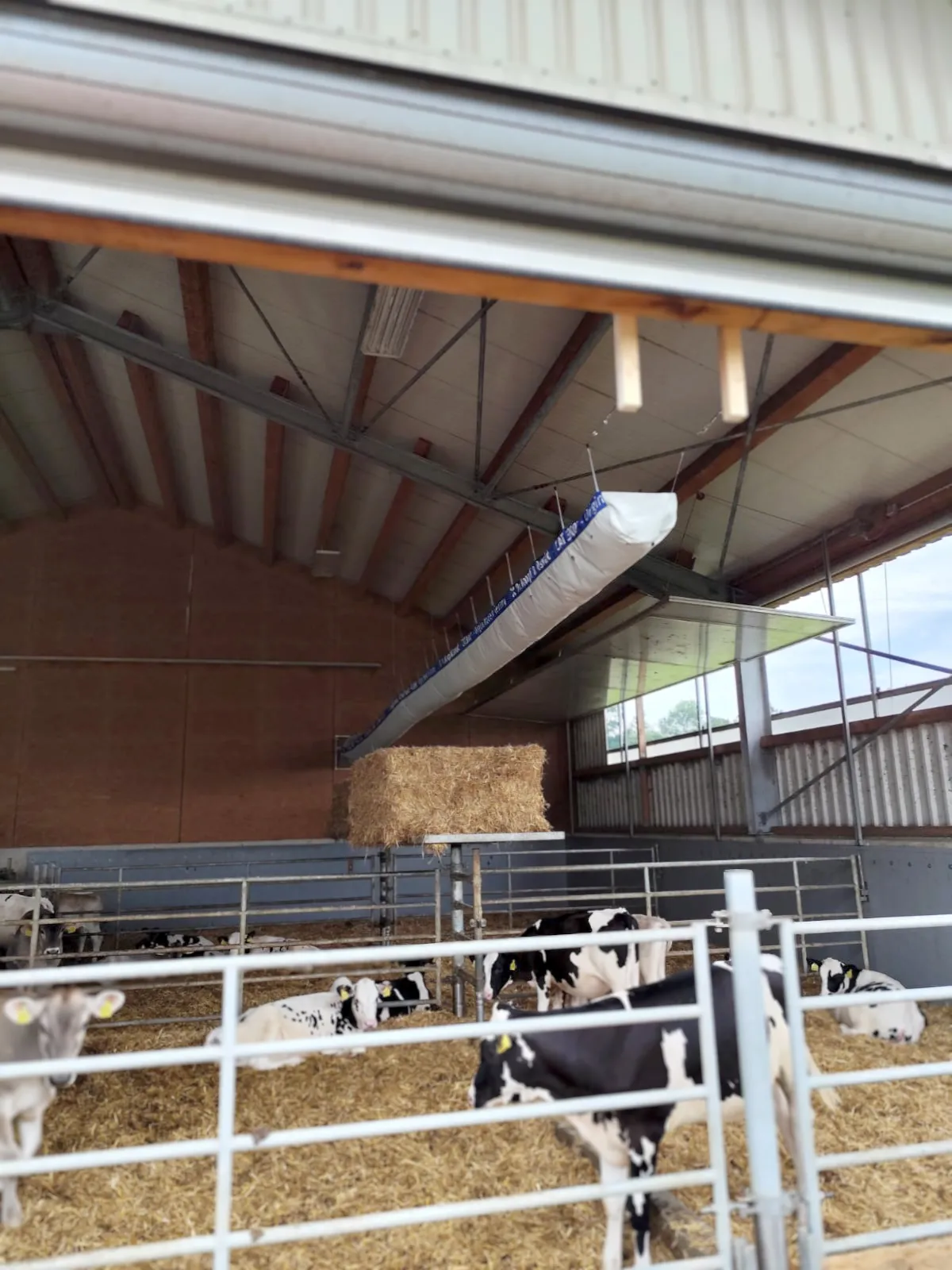

The CAT3000® ensures optimum air exchange
with fresh air directly at the doors
Quality down to the last detail
Features of the CAT3000® system
Robust, permeable fabric (prevents the formation of condensation)
Individually customizable - depending on the local conditions of your company
Washable at 40 °C and can be disinfected
Fire protection tested: Class B - s1, d0 (no burning droplets)
Free of harmful substances (Oeko-Tex® Standard 100)
Laser perforation individually executed (advantage: no fraying of the holes)
Separable with zippers and simple integrated mounting clips
Variable adjustable nozzles
Mounting material incl. cable suspension completely in stainless steel
Highly efficient blade fans
Made in Germany
Advantages
in the calf barn
Constant and effective fresh air supply in the calf barn
The textile hose with its variable nozzles delivers fresh air to the inside of the boxes - around the clock, all year round.
Reduction in veterinary costs and use of antibiotics
The improved air quality promotes the health of the calves as a preventative measure and supports healthy growth.
No circulation of the stable air
As the air is not recirculated but constantly renewed, the aggressive ammonia gas and the germ load in the calf rearing area are reduced.
Fast profitability through maximum animal welfare
Using the CAT3000® ventilation system reduces the cost of veterinary visits and lowers calf mortality. The optimized rearing environment pays for itself within a very short time.
Adaptation to seasonal and structural conditions
Stable ventilation with a ventilation hose compensates for all factors that could lead to an irregular and insufficient supply of fresh air.
Quality down to the last detail
Features of the CAT3000® system
Also discover our calf hutches
From Topcalf
As the general agent for Topcalf products in the DACH region, we are the right contact for you.
Convincing in use
Healthy calves for healthy livestock
Your FAQ about calf barn ventilation and barn climate
Why is good ventilation in the calf barn important?
Optimal ventilation reduces the concentration of harmful gases such as ammonia and CO₂, lowers humidity and improves air quality. This promotes the health of the calves and reduces the risk of respiratory diseases and other health problems.
What is hose ventilation in the calf barn?
Hose ventilation, such as the CAT3000® system, introduces fresh air evenly and draught-free into the barn. This improves air circulation and ensures a healthy barn climate, especially in closed or poorly ventilated barns.
How does hose ventilation work?
A fan feeds fresh air into a flexible hose, which distributes the air evenly throughout the hutch via perforated openings. The air speed is controlled so that there are no draughts, which is particularly important for sensitive calves.
Is hose ventilation in the calf barn also useful in winter?
What does hose ventilation in the calf barn cost?
Costs vary depending on barn size and specific requirements. However, it is important to consider the long-term savings from reduced veterinary costs and improved animal health.
How can I measure the air quality in the calf barn?
Air quality can be assessed by measuring ammonia and CO₂ concentrations as well as humidity. There arespecialized devices that monitor these parameters in the calf barn and thus enable targeted optimization of ventilation.
Do you also offer your ventilation systems for other animal species?
Yes, we offer suitable ventilation systems not only for calf and cattle barns, but also for horses, pigs, sheep and goats, sheep and goats and poultry. In this way, they ensure a healthy stable climate everywhere and promote the healthy development of the animals.
What alternatives are there to hose ventilation?
In addition to hose ventilation, there are natural ventilation systems in which fresh air enters the barn through open walls or ventilation flaps. However, this method depends on the weather and can be inadequate when there is no wind or high humidity.
How long does it take to install a hose ventilation system?
The installation of a 15-meter-long hose ventilation system usually takes around 5-6 hours, provided that no additional structural measures such as wall openings are required.
Give us a call,
We are always there for you
and advise you personally: +49 8092 853804-0,
or via our inquiry form:
For which animal species and applications is hose ventilation suitable?
We use hose ventilation for all conceivable animal species and special applications:
Cattle, sheep, goats, poultry, rabbits, pigs, horses, etc.
When designing the system, we take into account the health-safe air speed on the animal. As our systems are individually manufactured, we can cater to almost all special requests and special applications of our customers. With upstream air heaters or heat exchangers, heat-loving animal species can also be supplied with absolutely fresh air.
If your application is not listed here, simply ask us - we will find a solution. Our ventilation system can ventilate almost anything and can be configured so individually that it can be integrated almost anywhere - for example, our hose now also helps with the fresh air storage of sensitive organic cereals in high racks or with reducing humidity in the halls of a fish farm.
Can hose ventilation be combined with built-in ventilation systems?
The CAT 3000 hose ventilation system can be combined with various built-in or natural ventilation installations. If your barn already has an underfloor extraction system, for example, the system can be combined with it. Of course, the CAT 3000 can also be operated in combination with natural ventilation systems: In this case, the system can successfully compensate for seasonal differences in function - e.g. when there is no wind or no air can rise through the ridge due to the weather conditions. Please state your existing ventilation equipment in the inquiry form. We can then take these into account in your non-binding inquiry!
What does the name "CAT 3000" mean?
"CAT" is the abbreviation for "Clean Air Transport".
Does the barn ventilation have a control system?
Yes, we always equip our ventilation systems in stables with a 5-stage control system.
The ventilation output is calculated precisely for your barn and set to one level of the controller - as the "continuous operating level". In this setting, fresh air is supplied to the animals all year round. In the summer months from 25 °C, the system has an additional reserve for "summer operation". The air exchange rate can thus be increased in order to achieve an additional climate improvement in very hot weather.
What width does the hose ventilation cover?
In terms of width, the hose ventilation can supply approx. 7 meters of fresh air from the center point to both sides.
What is the maximum length of the hose ventilation?
The maximum length of the ventilation hose is approx. 50 meters. If a longer distance needs to be bridged, the system can be extended by a second system from the opposite side up to a total of 100 meters.
Depending on the ceiling height, it may also be possible to increase the diameter of the hose in order to supply fresh air to a distance greater than 50 meters. However, this option must be assessed on a case-by-case basis.
How much does a hose ventilation system cost - Price?
As every stable is a little different, we need a few details from you to make a non-binding offer. Simply complete the online inquiry form and send it off. We will send you a non-binding offer for your project within the next few days. If you are happy with our offer, one of our employees will visit you, take the dimensions of the barn and determine the position of the fan.
Can I install the barn ventilation myself?
After our quotation, the measurement and your order placement, you will receive all the individual components of the hose ventilation system. You can install these yourself using simple instructions. Once an electrician has established the power connection, the system can be put into operation immediately.
How long does the fabric of the ventilation hose last?
Our manufacturer specifies a service life of over 10 years for the material. The same material has been used in cheese dairies for over 12 years and is washed once a week for hygiene reasons.
The fabric is woven from special polyester yarn. It is washable and resistant to ammonia and harmful substances.
The air holes are laser-cut. This means that the edges are immediately fused in the cut and do not fray during washing.
Is condensation forming on the hose?
NO, condensation does NOT form on our ventilation hose.
To avoid condensation, we have opted for an air-permeable textile fabric for the hose material. As the fabric is constantly permeated with air, there is no surface on which humidity can condense.
Condensation can only form if the material of the hose is made of airtight material (e.g. airtight fabric, coated fabric, plastic film, etc.). The condensation then runs down the hose and drips off. Due to the permanent moisture, the hose quickly becomes covered in algae - as can be seen in the picture below. The picture shows a ventilation hose whose fabric has an airtight coating. You can see the water running down and dripping off. A green film of algae has formed on the top of the hose.
The material we use is easily permeable to air. You can therefore be sure that our ventilation hose will not "sweat" and that no condensation will form on the surface.
Wash and disinfect hose ventilation
The ventilation hose can be easily washed and disinfected. It can be divided into manageable pieces with zippers.
For effective disinfection, we recommend either washing with a disinfectant detergent in powder form in the washing machine or disinfection using an immersion bath (after prior washing).
Washing temperature: 40 degrees.
Do not wash above 40 degrees!
We offer a suitable detergent for simultaneous disinfection:
1:5 liquor ratio (ratio of laundry to water)
40g per kg capacity of the washing machine
Minimum main wash time at 40°C: 20 minutes
VAH-listed detergent for chemothermal laundry disinfection at 40°C. Excellent washing performance and stain removal.
Effectiveness: Disinfection procedure according to the Association for Applied Hygiene - VAH, the Robert Koch Institute - RKI (procedures registered for listing) and individual certificates:
Verbund für angewandte Hygiene (VAH): Bacteria (incl. MRSA, VRE, MRGN), yeasts
Robert Koch Institute (RKI) AB (registered): A: Bacteria, mycobacteria, yeasts; B: Viruses
Sporicides (full sporicidal efficacy according to Eurostandard EN 13704): Spores: Bacillus subtilis, Bacillus cereus, Clostridium difficile
Disinfection in the immersion bath
We offer a suitable disinfectant for carrying out disinfection by immersion:
Immersion bath after prior cleaning at min. 20°C, max. 40°C
Application time: 20 minutes
Dosage: 1%
Excellent microbiological efficacy (tested in accordance with EN 1276, EN 13697, EN 1650).
Free from chlorine, phosphates and aldehydes.
Microbiologically effective against:
Candida spec.
Aspergillus spec.
Enveloped viruses
Newcastle disease, paramyxovirus
Infectious bronchitis, coronavirus
Bluecomb disease, coronavirus
Infectious laryngotracheitis, herpes virus
Marek's disease, herpes virus
Classical avian influenza, orthomyxovirus
Avian leukosis, retrovirus
Avian sarcomatosis, retrovirus
Fowlpox, Poxvirus
Unenveloped viruses
Avian encephalomyelitis, picornavirus
Infectious Bursal disease /Gumboro, Birnavirus
Stunting syndrome, parvovirus
Avian adenovirosis, adenovirus
Egg drop syndrome, adenovirus
Bacteria
Mycoplasmosis: Mycoplasma species
Fowl typhus, Salmonella gallinarum pullorum
Poultry cholera, Pasteurella multoida
Enveloped viruses
Classical swine fever, Togavirus
TGE, coronavirus
Aujeszky's disease, herpes virus
Influenza, myxovirus
PRRS, Arterivirus
Vesicular stomatitis, rhabdovirus
Unenveloped viruses
Foot and mouth disease, picornavirus
Teschen disease, picornavirus
Vesicular disease, picornavirus
Vesicular exanthema, calicivirus
Parvovirosis, parvovirus
bacteria
Leptospirosis, Leptospira interrogans
Atrophic rhinitis, Bordetella/ Pasteurella species
Brucellosis, Brucella suis
Salmonellosis, Salmonella species
Dysentery, Treponema hydrodysenteria
Erysipelas, Erysipelothrix rhusiopathiae
Contagious plueropneumonia, Haemophilus pleuropneumonia
Enveloped viruses
Vesicular stomatitis, rhabdovirus
"Rinderpest", paramyxovirus
Lumpy skin disease, poxvirus
Rift valley fever, Bunyavirus
Bovine leukosis, retrovirus
Infectious rhinotracheitis/vulvovaginitis (IBR-IPV), herpes virus
Mucosal disease, Togavirus
Unenveloped viruses
Bovine adenovirus, adenovirus
Foot-and-mouth disease, picornavirus
Bacteria
Contagious pleuropneumonia, Mycoplasma mycoides
Mycoplasma mastitis, Mycoplasma bovis
Leptospirosis, Leptospira interrogans
Brucellosis, Brucella species
Genital camphylobacter, Camphylobacter species
Dermatophilosis, Dermathophilus congolensis
Hemorrhagic septicemia, Pasteurella multacida
Salmonellosis, Salmonella dublin
Mastitis agalactica, Steptococcus agalactica
Enveloped viruses
Plague of small ruminants, morbillivirus
Rift valley fever, Bunyavirus
Nairobi sheep disease, Bunyavirus
Smallpox, poxvirus
Cold sores, poxvirus
Maedi / Visna, Retrovirus
Pulmonary adenomatosis, enveloped viruses
Unenveloped viruses
Foot-and-mouth disease, picornavirus
Bluetongue disease, reovirus
Bacteria
Dermatophilosis, Dermathophilus congolensis
Brucellosis, Brucella species
Contagious agalactica, Mycoplasma agalactica
Salmonellosis, Salmonella abortus ovis
Listeriosis, Listeria
Atrophic rhinitis, Pasteurella multocida
Enveloped viruses
Vesicular stomatitis, Rhabdovirus
Infectious anemia, Retrovirus
Equine influenza, Orthomyxovirus
Rhinopneumonitis, Herpesvirus
Smallpox, Poxvirus
Equine viral arteritis, Togavirus
Equine encephalomyelitis (WEE, VEE, EEE), Togavirus
Non-enveloped viruses
African horse sickness, Reovirus
Bacteria
Dermatophilosis, Dermatophilus kongolensis
Contagious metritis, Taylorella equigentalis
Glandes, Pseudomonas mallei
Equine salmonellosis, Salmonella abortus equi
Strangles, Streptococcus equi
Mellioidosis, Pseudomonas pseudomalei
We will be happy to make you an offer.
We will be happy to send you the washing instructions and washing order on request.
How does the installation work?
We supply you with all the components you need to install the fan, the weather protection hood (optional), the control unit and the ventilation hose. The fan and cable suspension are easy to install.
As a wall opening in load-bearing walls interferes with the statics of the house, we always recommend consulting a structural engineer. If necessary, installing a lintel over the opening can solve the problem easily. If nothing stands in the way of the breakthrough, it can be carried out manually or with a core drill (by a specialist company).
Once the opening has been created, the matching wall duct supplied is fitted flush into the wall. It seals the masonry cleanly and prevents air turbulence in front of the fan thanks to its smooth surface.
The fan and control unit may only be connected to the power supply by an electrician.
The fan and the cable suspensions are attached with dowels. Pay attention to the routing of cables (electricity/water/gas etc.)!
Once everything is ready, the ventilation hose can simply be hooked into the tensioned ropes using clips. The hose is connected to the fan with a hose clip. Once all the components have been installed, the system can be put into operation.
What is the process from planning to installation?
Procedure:
- You will receive a non-binding offer from us after submitting the inquiry form.
- If you are happy with our offer, we will come to you to discuss and measure the structural situation on site. We will add the cost of this to the purchase price when you buy the hose ventilation system.
- Once we have received your order, we manufacture your individual ventilation duct exactly according to our measurements. We also put together suitable fans, wall ducts and installation materials.
- You will be informed of the dimensions of the wall opening for the structural preparation.
- After testing the hose aeration system at our premises, during which we check and readjust the function and flow rate of the air at animal height, among other things, we pack and ship your CAT 3000 hose aeration system.
- The enclosed installation instructions make it easy for you to install the hose ventilation system.
- The hose ventilation is connected by an electrician.
- And the CAT 3000 hose ventilation system can be put into operation immediately.
What colors is the stable ventilation hose available in?
The standard color of the hose ventilation is light grey. For colorful accents, it can also be supplied in red, yellow, blue or black.
Does the hose ventilation run all year round?
Yes, the hose ventilation runs constantly all year round, 24 hours a day, 365 days a year. Only on very hot days in summer can the air exchange rate be gradually increased on the control unit for an additional cooling effect.
Does the hose ventilation also work in winter?
Yes, in any case. As all barn doors and openings are often closed in winter, barns without ventilation have a high level of humidity (recognizable by condensation on the windows). The humidity is greatly reduced by the CAT3000 hose ventilation system. Clean, dry fresh air always flows into the barn. This is always healthier than damp stable air enriched with germs and ammonia. In addition, lying comfort is increased by drier straw.
Our ventilation hose is made of slightly air-permeable fabric. This prevents condensation forming on and in the hose - especially in winter.
How long does it take to install the hose ventilation?
With a system of 15 meters, the installation of the barn ventilation takes approx. 5-6 hours (without wall breakthrough and electrical installation).
